AGH Transducers

  • AG Geophysical

Overview

AGH Transducers Image 1
AGH Transducers Image 1
AGH Transducers Image 2

Key Features:

  • ​Measures depth and pressure of seismic sources in a compact, ruggedized package that withstands repeated high shocks found in seismic survey applications

Part of AG Geophysical's 7000 Series of AGH Hydrophones, the Transducer line consists of:

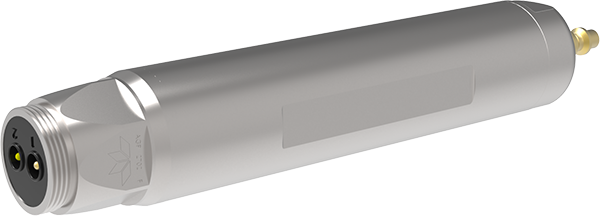

  • AGH D500 - Gun Depth Transducer

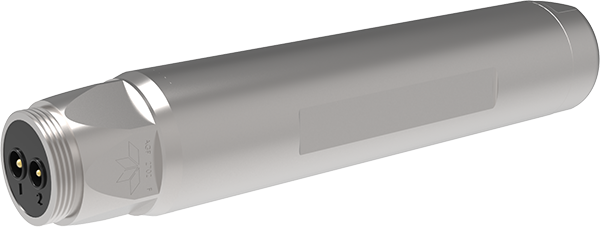

  • AGH P600 - Gun Pressure Transducer

Specifications

AGH D500 - Gun Depth Transducer

Weight​4 lbs
​Diameter1 3/4"
ConnectorAGP 2702 F
Female Positive Bulkhead 1 1/16" St. Thread style
​Input30 VDC Max
Wiring​Pin 1+ → Pin 2-
​Output​0 Mtrs (2 KHZ)
34 Mtrs (5.4 KHZ)
​Scale+1 HZ/CM
AccuracyCalibrated to ± 10 CM
Resolution​1 HZ
​Operating Temperature-10C / +60 C

AGH P600 - Gun Pressure Transducer

Weight4 lbs
​Diameter​1 3/4"
ConnectorAGP 2702 F
Female Positive Bulkhead 1 1/16" St. Thread style
​Input30 VDC Max
​WiringPin 1+ → Pin 2-
Output​0 PSI (2 KHZ)
3000 PSI (5 KHZ)
Scale+1 HZ/ PSI
Accuracy​Calibrated to ± 10 PSI
​Resolution​1 HZ
Operating Temperature-10C / +60 C
