Blueview Module

Overview

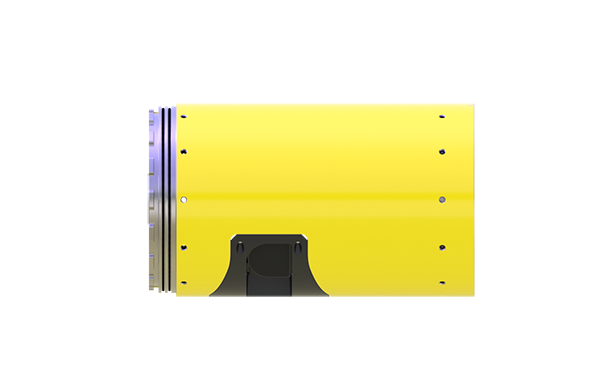

Gavia AUV Section
Gavia AUV Section

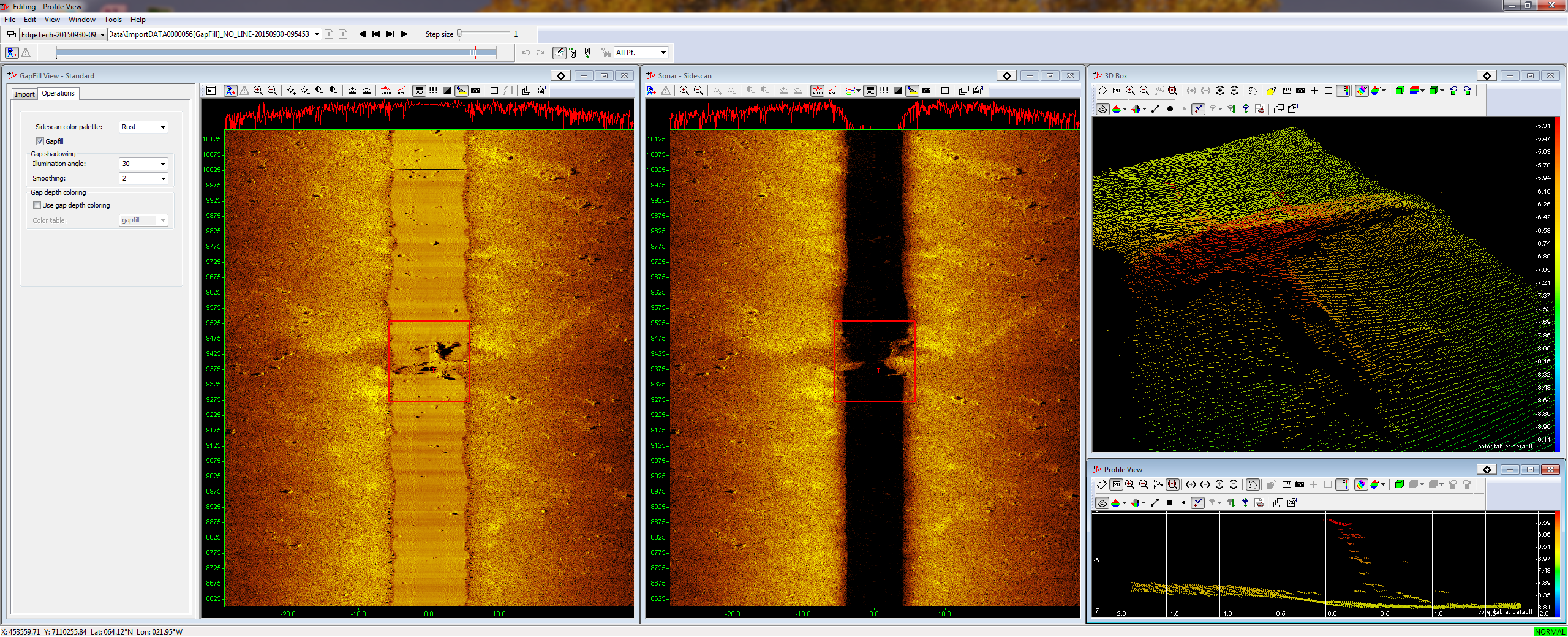

BlueView GapFill Plane

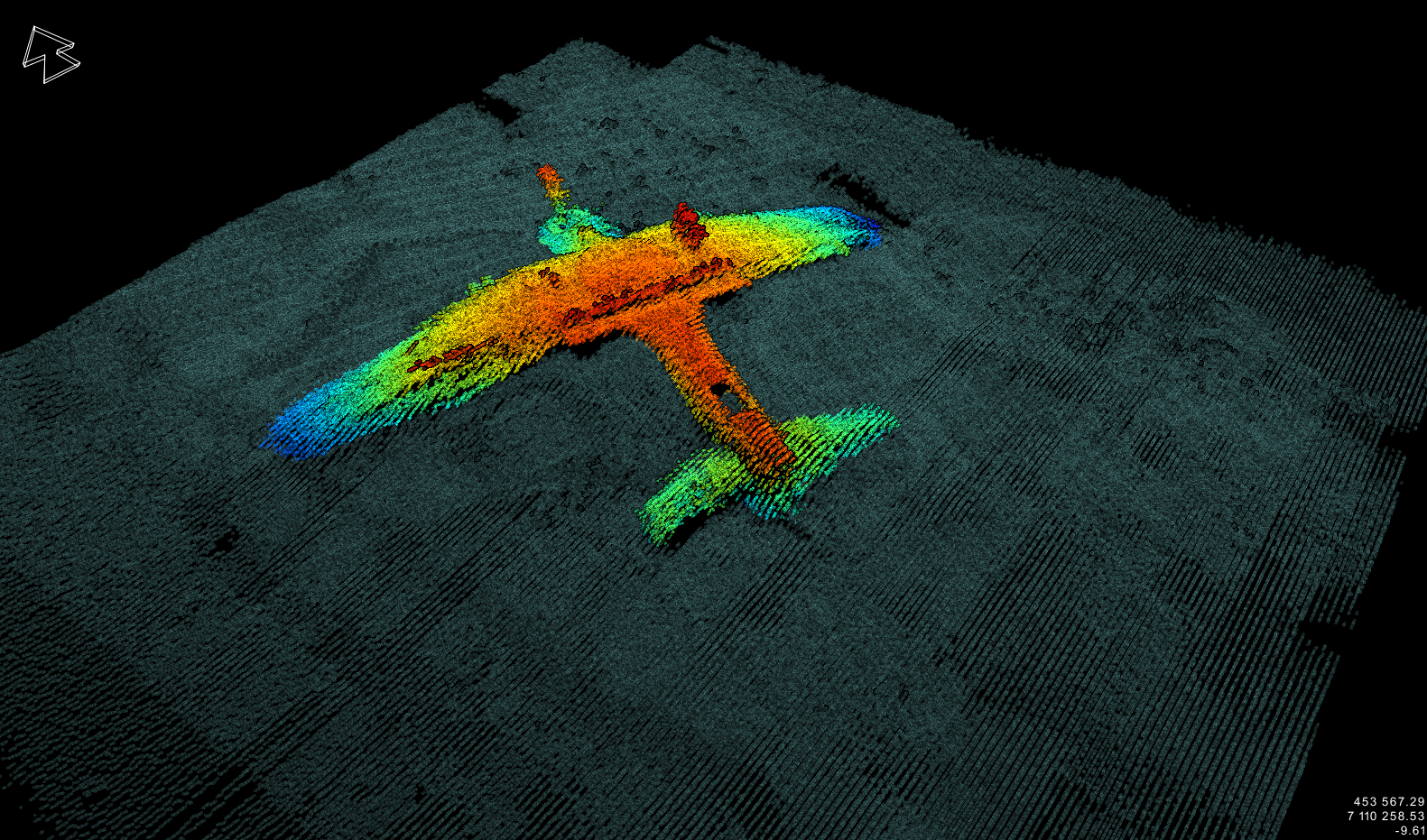

Gavia Plane

Key Features:

  • High-resolution 3D mapping
  • 2D SideScan Gapfill software compatible with all leading SSS brands
  • Precise timing (1PPS)
  • Embedded SmartCore™ processor for logging of data and streaming of profiles over UDP, with extended mission profile storage when using “Real-Time” profile mode
  • Fully integrated with the Gavia Control Center Software

The BlueView 2250 multibeam profiling module, built for the Gavia AUV by Teledyne BlueView, provides high-resolution 3D mapping capabilities. This allows for detailed and accurate imaging of underwater environments.

The module is compatible with 2D SideScan Gapfill software, which works with all leading side-scan sonar (SSS) brands. This feature helps in filling gaps in side-scan sonar data, ensuring comprehensive coverage.

Precise Timing: The module includes precise timing features (1PPS) to ensure accurate data collection and synchronization.

The BlueView module is equipped with an embedded SmartCore™ processor that logs data and streams profiles over UDP. This processor also allows for extended mission profile storage when using the "Real-Time" profile mode.

Integration with Gavia Control Center Software: The module is fully integrated with the Gavia Control Center Software, enabling seamless operation and data management.

Overall, the Gavia BlueView Module significantly enhances the Gavia AUV's capabilities in high-resolution mapping, target rendering, and comprehensive underwater surveys.

Specifications

  • Range 2.7m – 7.0m (optimal), 10.0 m (max)
  • Frequency 2250 kHz
  • Field of view 76° (@1500 m/s sound speed)
  • Beam Width 1°x1° (Nominal)
  • Range Resolution 0.64 cm (0.25 in)
  • Number of Beams 512 beams max
  • Beam Spacing 0.18° (Nominal)
  • Max Range 10 m (max), 7 m optimal
  • Data Storage 208GB
  • System Power Consumption 35 watts max @ 24 V, 15 Hz.
  • Depth Rating 1000m
  • Time Synchronization PPS timing synchronization
  • Dimensions 200.0mm (7.87 in) diameter x 338.2mm (13.15 in) length

Applications

  • Pipeline tracking and inspection
  • Mine hunting | Seabed mapping
  • Object detection and identification
  • Intelligence, Surveillance, and Reconnaissance (IRS)
  • Site clearance survey
