Mini Metal Shell Electrical Connector

  • Impulse

Overview

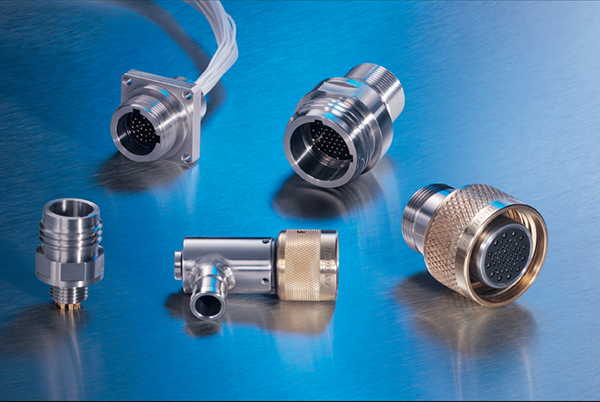

Mini Shell Electrical Connector
Mini Shell Electrical Connector

Key Features:

  • Cable connector plugs and receptacles are overmolded using polyurethane
  • Up to 96 contacts
  • Up to 600 VDC.
  • 10,000 PSI in mated condition

Benefits:

  • ​Compact, reliable high density connector suited for instrumentation in harsh environments

A high density (up to 96 contacts) miniature waterproof electrical connector keeps weight to a minimum and fits into compact spaces. Well suited for underwater vehicles such as ROVs, AUVs, and UUVs, where space and weight are typical design constraints. Durable materials allow reliable connectivity with low risk of operational failure.

316 Stainless Steel passivated per QQ-P035 Type VI with naval bronze engaging nut

Special alloys available upon requestContains a removable glass reinforced epoxy insert (except for MHDG series and CCP's)

Bulkhead connector design open face pressure rated to 5,000 psi

​​Connector
 ​# of Contacts
 ​Voltage Rating (VDC)
 ​Bulkhead Thread
 ​Mated Pressure Rating (PSI)
​MHDG
 ​2,3
4,5,7,8,9,10,12,14,15,16
 ​600
300
 ​9/16"-18
​9/16"-18
 ​​10,000
​​10,000
MHDL
 ​8,9,12,16
​12,16,24,26
 ​600
300
 ​7/8"-20
​7/8"-20
 ​10,000
10,000
​MHDM
 ​24,26,36
 ​300
 ​1"-20
 ​10,000
​MHDO
 ​38,46,48,49,61
26
11,19
 ​300
450
600
 ​1 1/8"-16
​1 1/8"-16
​1 1/8"-16
 ​10,000
10,000
10,000
​MHDR 19,55,78,96
 ​600 ​1 1/2"-12
 ​10,000


Miniature High Density Oil Filled

​​Connector
 ​# of Contacts
 ​Voltage Rating (VDC)
 ​Bulkhead Thread
 ​Mated Pressure Rating (PSI)
​MHDG-OF
 ​2,3,4,5,7,8,9,10,12,14,15,16
 ​​300
 ​9/16"-18
 ​5,000
​MHDL-OF
 ​8,9
12,16,24,26
 ​600
300
 ​
 ​5,000
5,000
​MHDO-OF ​11, 19
26
38,46,48,49,61		 ​600
450
300		 ​

1-1/8"-16		 ​5,000
5,000
5,000​​​​​​​

Applications

  • Signal Telemetry
  • Hazardous Enviroment
  • A variety of environments where cable to cable termination is necessary
