Rubber Molded GRE Connectors

  • Impulse

Overview

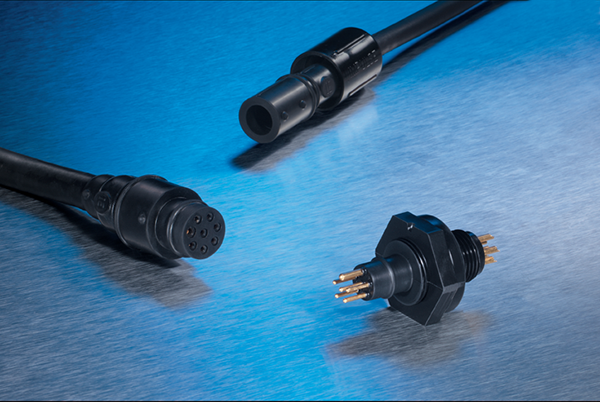

Impulse Rubber Molded
Impulse Rubber Molded

Key Features:

  • ​Plastic or stainless steel locking sleeves.
  • Low pressure (< 4000 PSI) and high pressure dummies available.
  • Working voltage 600VDC.
  • Up to 10,000 PSI pressure rating in mated condition.
  • Bulkhead connectors open face pressure rated to 5,000 PSI.
  • Contacts gold plated per MIL-G-45204.​

Benefits:

  • ​Field installable connectors have a removable tapered boot for easy access to solder pots during field installation.

​Molded neoprene inline connectors supplied on 24" length of #18 AWG SO cable (RMA/VMA supplied on 24" length of #20 AWG cable).

Custom lengths and cable types available on request.

Some polyurethane molded inline connectors also available.

Glass reinforced epoxy bulkhead connectors available with solder pots or numbered Teflon leads. (G + K size also available with stainless steel / neoprene molded bulkhead connectors).

​
​​Connector
 ​# of Contacts
 ​Voltage Rating (VDC)
 ​Bulkhead Thread
 ​Mated Pressure Rating (PSI)
​XSA / XSB / RMA
 ​1
 ​600
 ​1/4"-28, 5/16"-24
 ​​10,000
​XSG / RMG
 ​1-6
 ​600
 ​3/4"-16, 1/2"-20
 ​10,000
​AG206 / AG306
 ​6
 ​600
 ​1/2"-20
 ​10,000
​LSG / LMG
 ​3
4,6
 ​600
600
 ​1/2"-20
9/16"-18
 ​10,000
10,000
​XSK / RMK
 1-8,12
 ​600
 ​1"-14
 ​10,000
​Locking Sleeve
 ​ ​600
 ​ ​10,000
​


Inverted Rubber Molded /Glass Reinforced Epoxy

​​Connector
 ​# of Contacts
 ​Voltage Rating (VDC)
 ​Bulkhead Thread
 ​Mated Pressure Rating (PSI)
​VSA / VSB / VMA
 ​1
 ​​600
 ​1/4"-28, 5/16"-24
 ​10,000
​VSF / VMF
 ​1-3
 ​600
 ​1/2"-20
 ​10,000
​VSG / VMG
 ​1-4
 ​600
 ​3/4"-16, 1/2"-20
 ​10,000
​VSK/VMK
 ​1-8,12
 ​600
 ​1"-14
 ​10,000
​

Specifications

XSA / XSB / RMA Connector

# of Contacts1
Voltage Rating (VDC)600
Bulkhead Thread1/4"-28, 5/16"-24
Mated Pressure Rating (PSI)10,000

XSG / RMG Connector

# of Contacts1-6
Voltage Rating (VDC)600
Bulkhead Thread3/4"-16, 1/2"-20
Mated Pressure Rating (PSI)10,000

AG206 / AG306 Connector

# of Contacts6
Voltage Rating (VDC)600
Bulkhead Thread1/2"-20
Mated Pressure Rating (PSI)10,000

Specifications

  • Molded neoprene inline connectors supplied on 24" length of #18 AWG SO cable (RMA/VMA supplied on 24" length of #20 AWG cable). Custom lengths and cable types available on request.
  • Some polyurethane molded inline connectors also available.
  • Glass reinforced epoxy bulkhead connectors available with solder pots or numbered Teflon leads. (G + K size also available with stainless steel / neoprene molded bulkhead connectors).
  • Plastic or stainless steel locking sleeves.
  • Low pressure (< 4000 PSI) and high pressure dummies available.
  • Field installable connectors available with tapered boot.
  • Working voltage 600VDC.
  • Up to 10,000 PSI pressure rating in mated condition.
  • Bulkhead connectors open face pressure rated to 5,000 PSI.
  • Contacts gold plated per MIL-G-45204.​

​Light to medium duty applications.
Hazardous environment.
Power transmission.
Signal telemetry​
